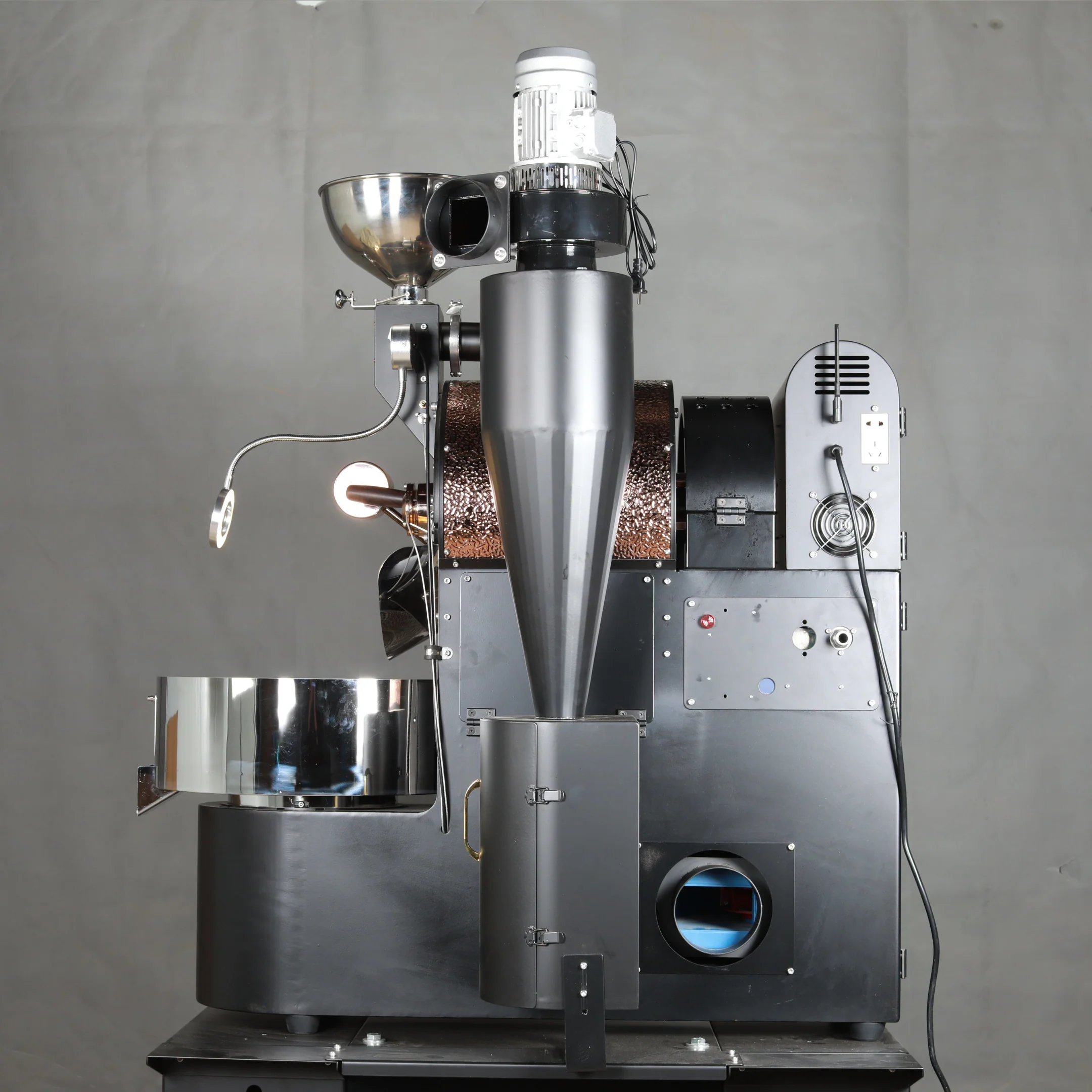

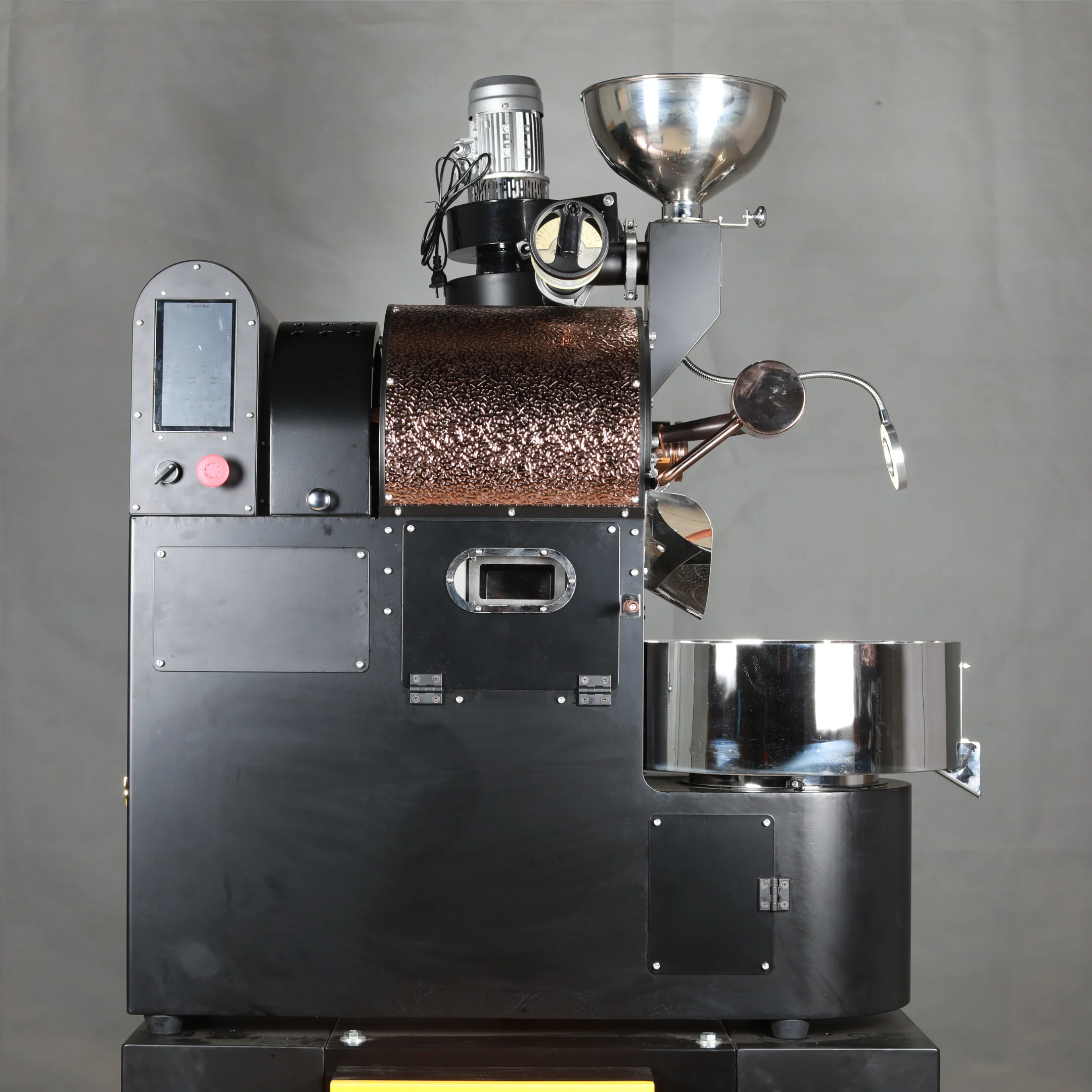

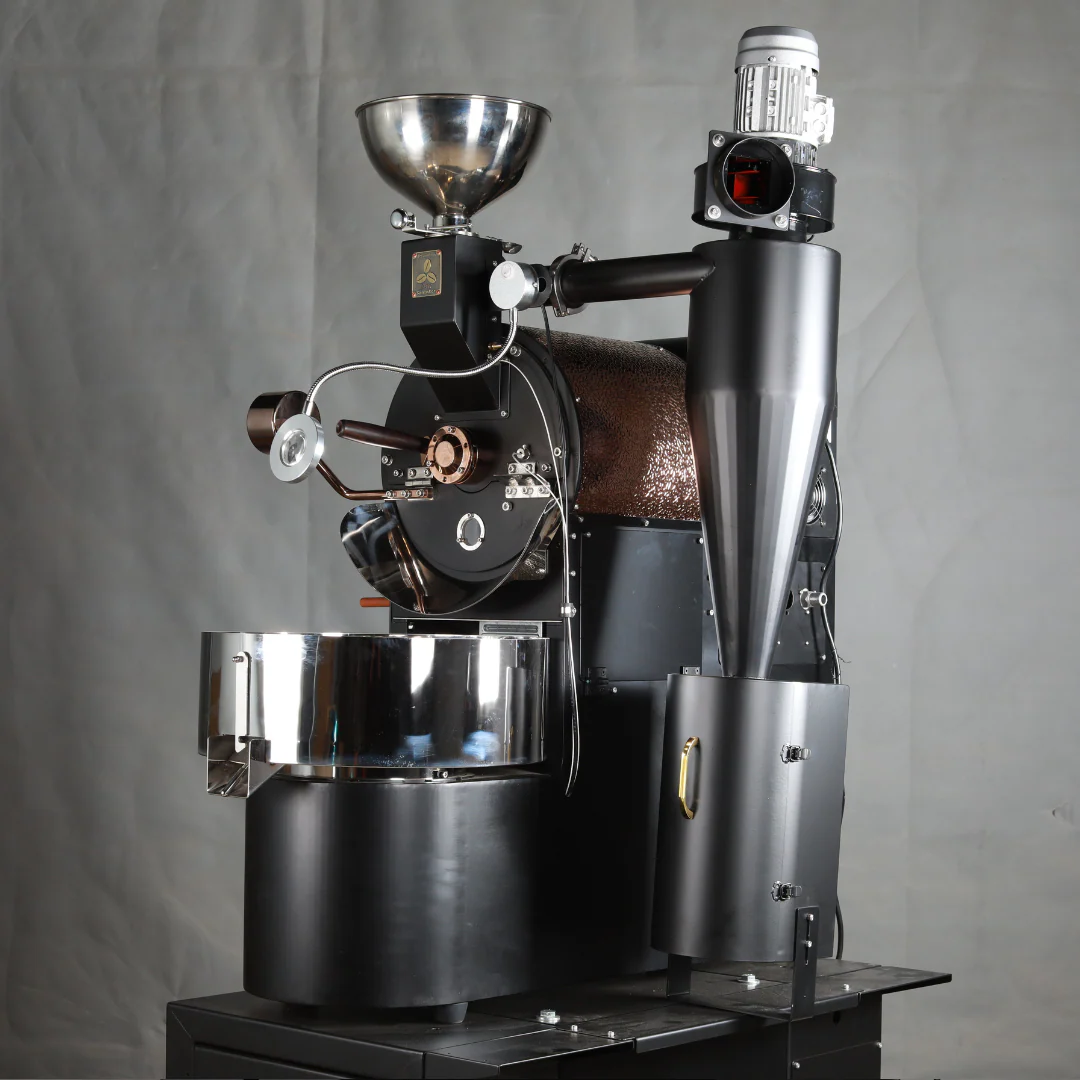

Santoker R3 Pro Automatic Coffee Roaster - 3kg/Batch (WS-3A)

*As each roaster is manufactured to order, delivery times may range from 12-16 weeks.

**As each roaster is specially manufactured to order, cancellations or returns are not supported.

 Features:

• Award winning roaster
• Available in Gas and Electric types
• Roasting and cooling can work at same time, separated chaff cyclone for effective chaff separation
• High quality stainless steel cooling tray with bin agitator
• Self ignition with adjustable heat control
• High grade insulation layer for keeping heat inside the drum
• Sight glass, burner window glass, sampler spoon and the real-time temperature displays
• Four high quality motors to control drum, hot air volume, cooling tray and cooling mixing.
• Non-stop roasting from 500g-3200g
• Manual controls of air flow to maximize coffee taste
• Auxiliary LED Lamp magnifying glass
• Vacuum pressure gauge for options
• One key machine warming up function
• 2-in-1 Mobile Phone Bluetooth and Computer USB work with Artisan Software for Data logging

Manual Type	Automatic Type
Freely control the roasting process with a manual control panel. adjust airflow in drum adjust gas pressure control beans and hot air temperature adjust drum speed in any time	Helps you roast beans in consistency batch by batch with a PLC control panel. If you have a ready roasting profile or roasting curve, the machine can roast according to it automatically.



Specifications:

Roaster Type	Electric	Gas (Natural or LPG)
Batch Capacity	500g-3200g/drum	500g-3200g/drum
Roasts per Hour	4-5	4-5
Roasting Time	12-18 minutes/batch	12-18 minutes/batch
Capacity per Hour	12kg-16kg	12kg-16kg
Heating	Electric	Natural Gas/ Propane/ LPG
Electrical Power	Single Phase 220V / 50 or 60Hz	Single Phase 220V / 50 or 60Hz
Heating Power	8KW	-
Temperature Range	0-300  °C	0-300  °C
Gas Consumption	None	0.2kg/hr
Dimensions	100x70x125cm	100x70x125cm
Weight	175kg (385.8lbs)	175kg (385.8lbs)
Warranty	1 year	1 year
