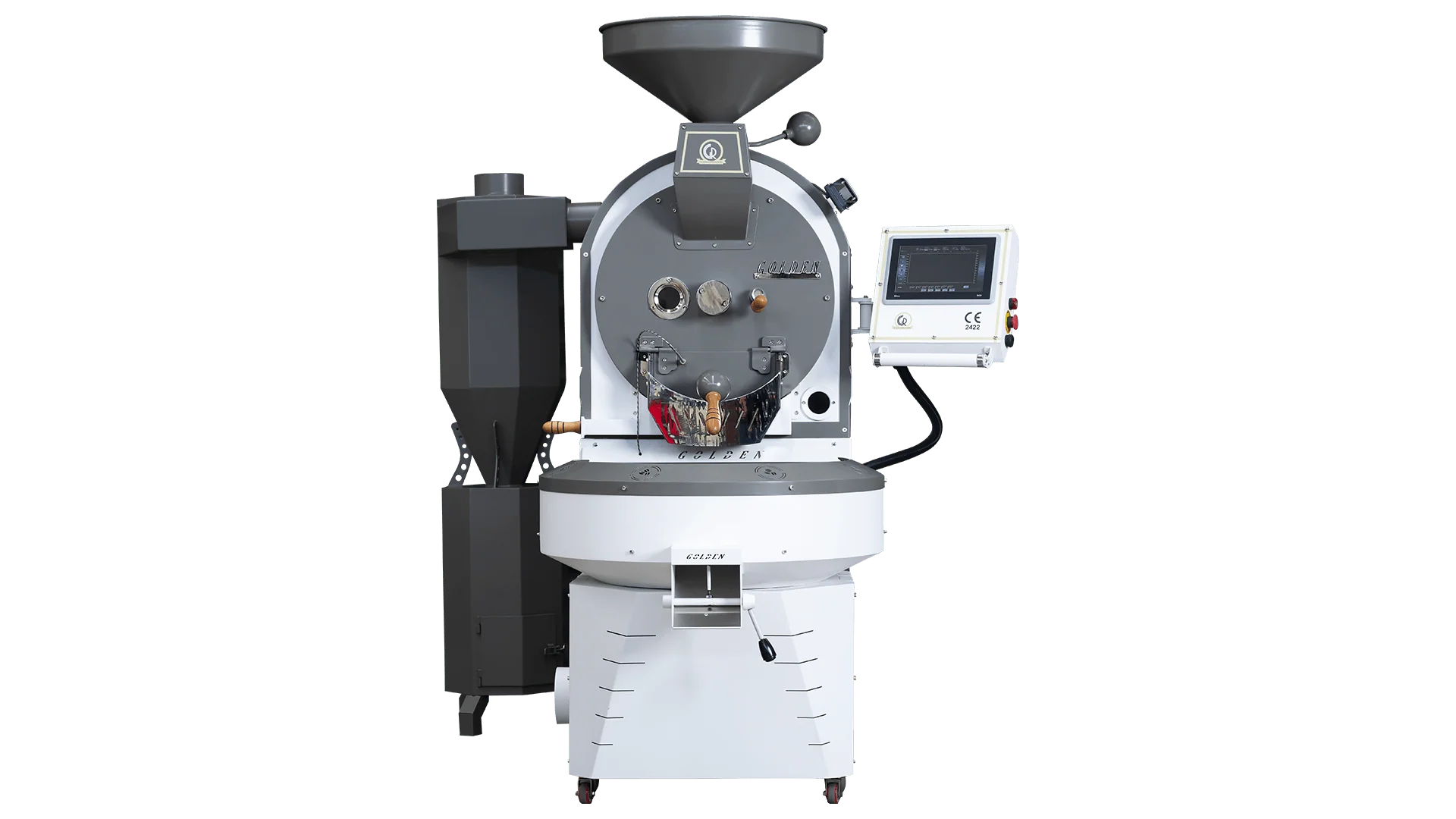

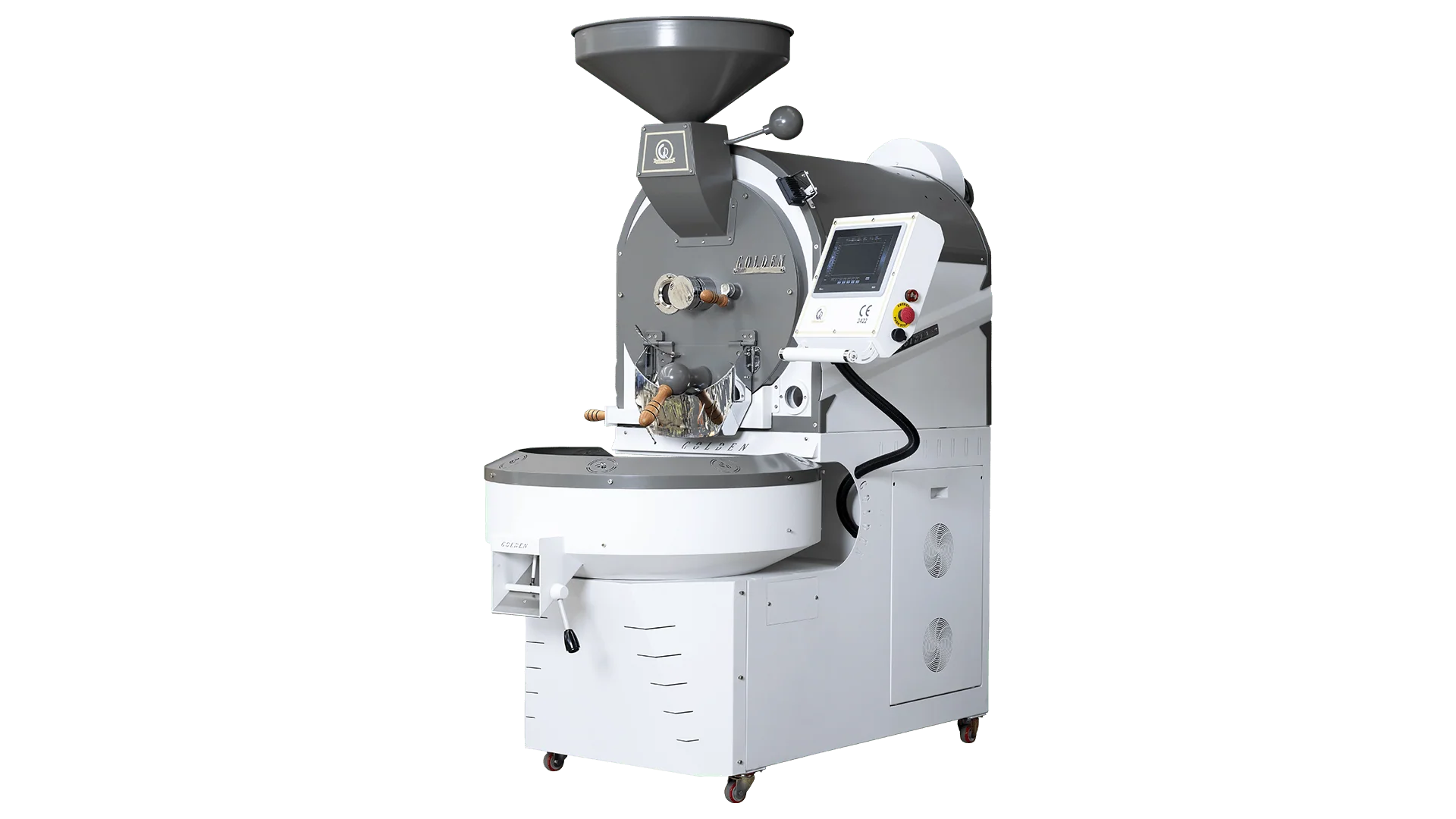

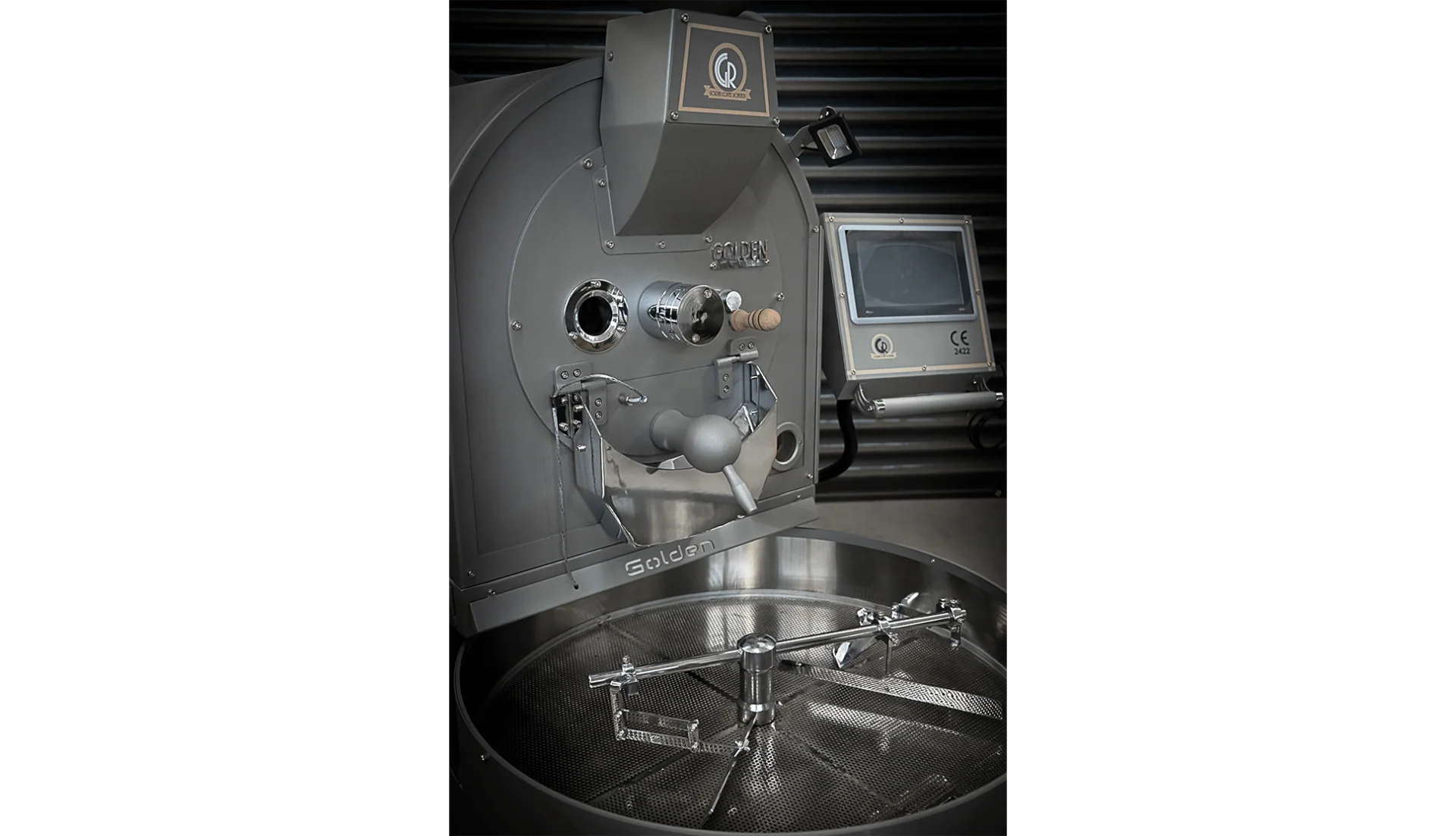

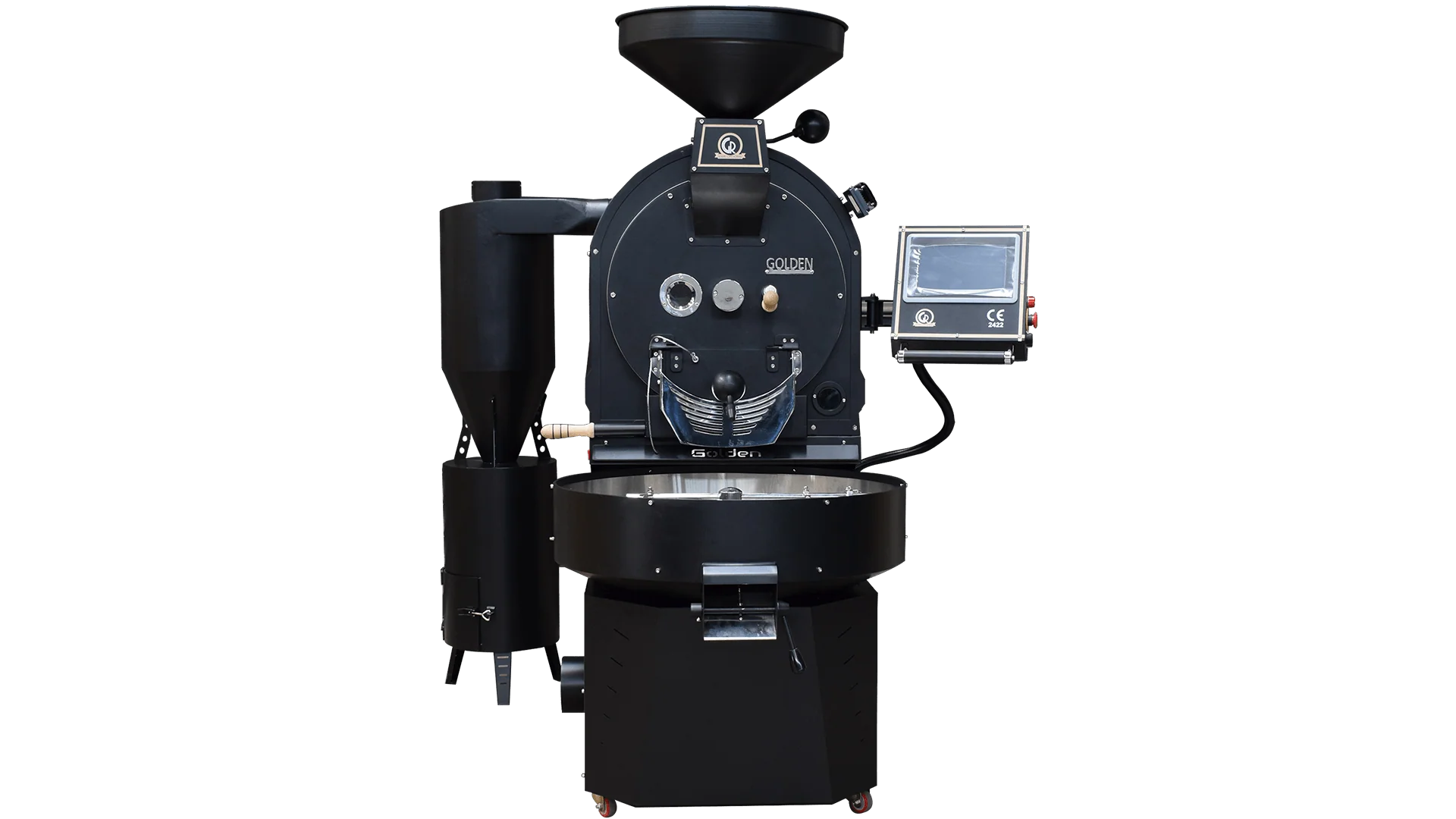

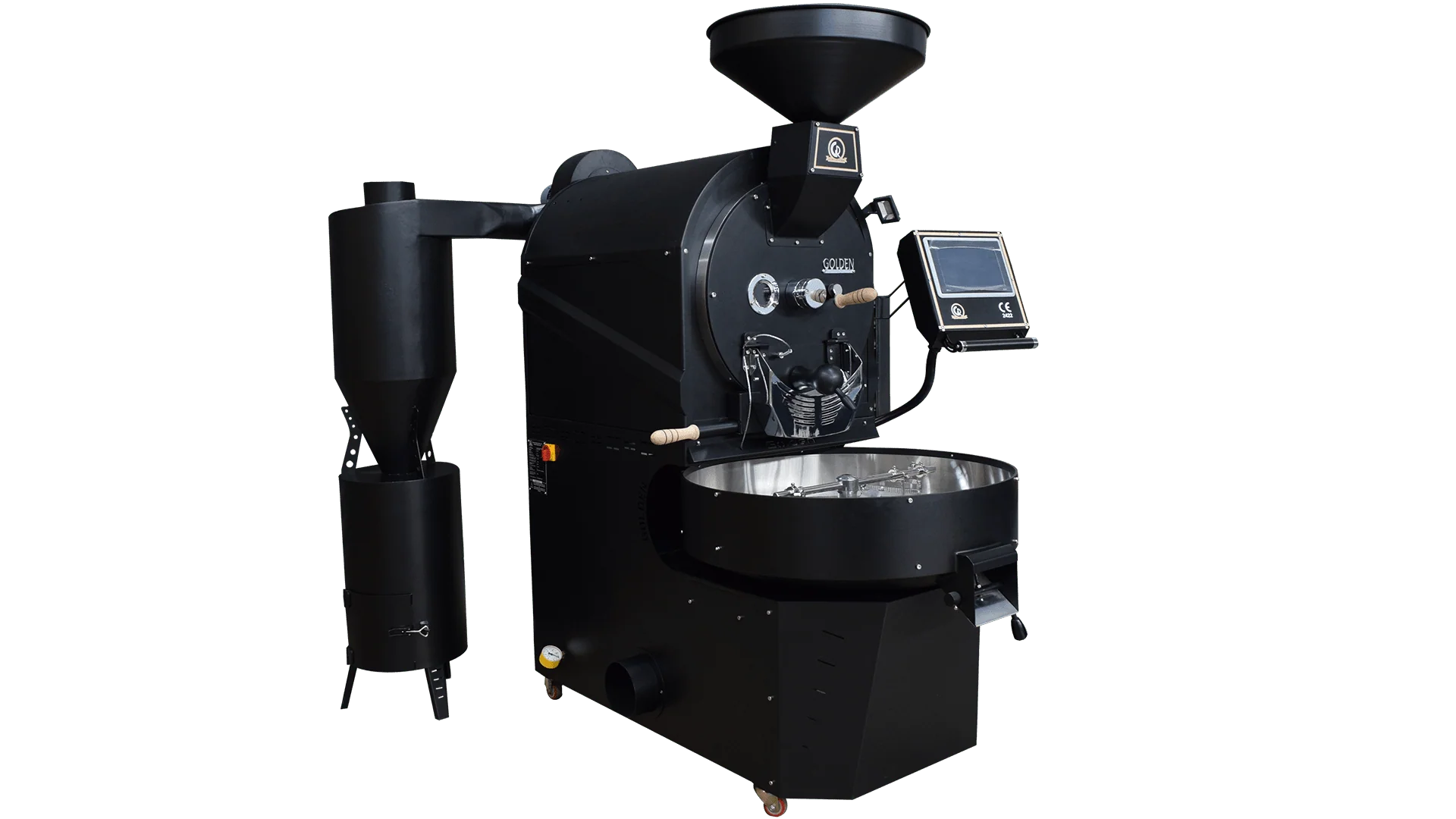

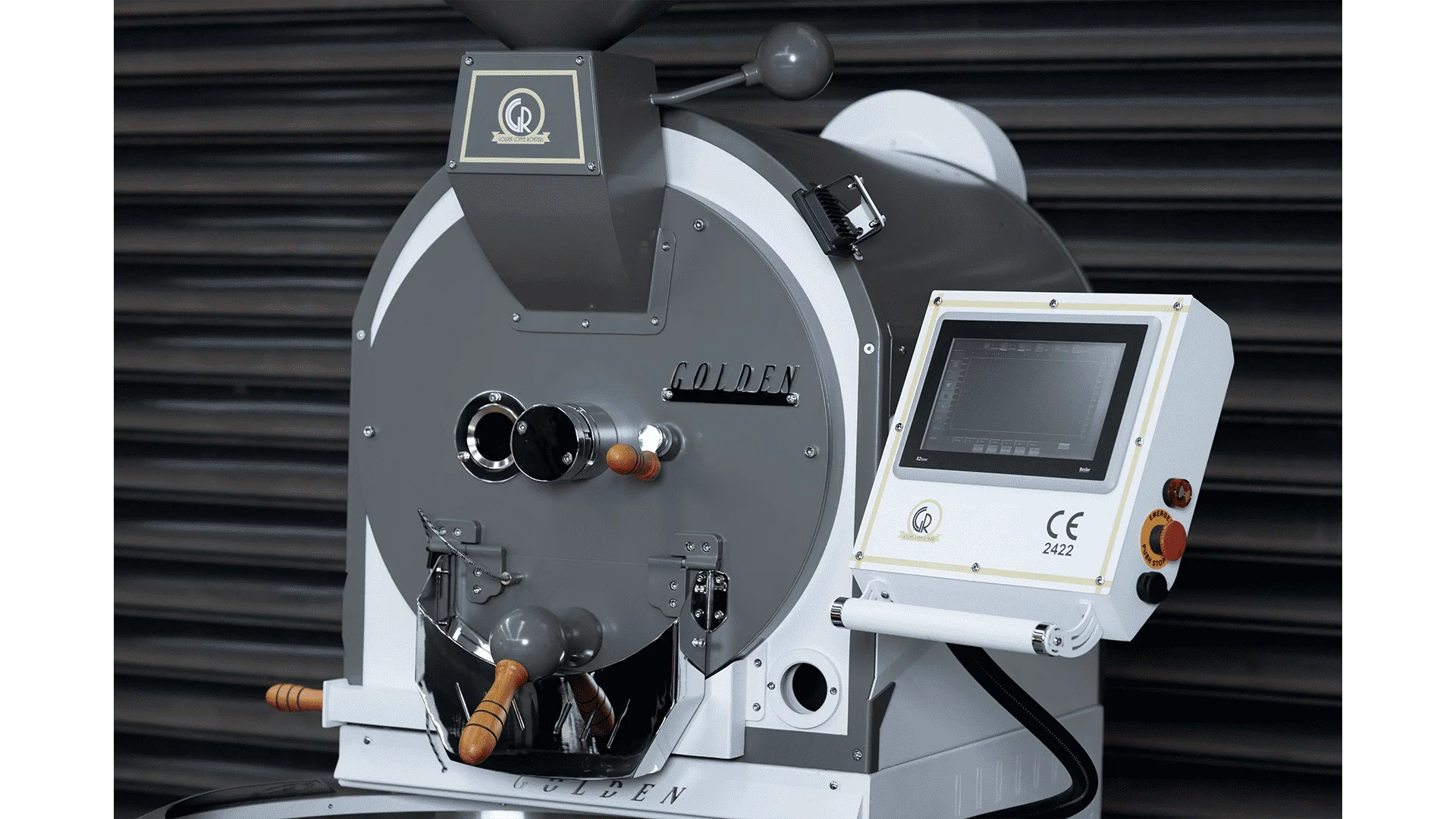

Golden Roasters GR 10 Commercial Coffee Roaster
*Custom Made To Order and Shipping: 10-12 weeks
*Non-cancelable and non-refundable
The Epitome of Artisanal Coffee Roasting Mastery
With 10 KG capacity, Golden GR-10 coffee roaster is designed for discerning roasters seeking precision, and unmatched consistency.
Crafted with advanced control systems, Golden GR-10 coffee roaster machine offers unparalleled customization, allowing you to fine-tune every aspect of the coffee roasting process such as adjustable proportional flame levels, drum RPM and precise airflow control, experience the perfect roast profile tailored to your preferences.
The coffee roasting machine has an improved interface and offered PLC controller ensures effortless operation, while its robust construction guarantees longevity and reliability.
Unlock a world of flavor possibilities with Golden GR-10 coffee roaster. Invest in excellence and experience the art of coffee roasting at its finest.
Golden Pressure Profiling System (GPPS)
At Golden Roaster, drum pressure is precisely managed using an integrated internal pressure sensor that continuously monitors the differential pressure within the roasting chamber, measured in Pascals (Pa).
This sensor-driven system dynamically modifies fan speeds and airflow to create and maintain the desired pressure which plays a critical role in ensuring even heat distribution and optimal flavor development throughout the roast. Thus, the system
| Manual |
User controls all functions by buttons from the control panel.
|
| Semi-Auto |
User controls all functions from a Beijer touchpad screen, and it has PLC unit to record profiles for auto run.
|
| Full Auto |
Auto version with a pneumatic system on the gates. This allows roaster to run saved profile by itself fully automatically. (Full Auto requires air compressor)
|
Safety and Warranty:
- CE certified gas blocker and UL certified electric components.
- Gas security System; To stop all system in case of any abnormality in gas pressure
- Emergency button: to turn off all roasting process
- Independent thermocouples with digital indicator
- Chaff driver to collect chaff falling through drum
- "Mechanical chaff collector" to lower of the cyclone to minimize the risk of fire.
Inclusions:
- Advanced Controller with PLC
- 10" Beijer Touchscreen Controller
- Chaff Collector Cyclone
- Drup Gap Adjustment Wrench
- Thermocouples
- Interactive Installation Guide & Support
- Lifetime Technical Support
- 2 years warranty (spare parts and service)
- Lifetime Service warranty
Technical Specifications:
| Batch Capacity |
10 KG |
| Capacity per Hour |
40 KG |
| Roasting Cycle |
9-17 mins |
| Type of Controlling |
PLC |
| Touchscreen |
10" Beijer |
| Electrical Power Options |
110-220-380 V / 50-60 Hz |
| Power Consumption |
2,24 KW/h |
| Heating Source |
LPG – LNG – Natural Gas |
| Burner Type |
Premix |
| Burner Power |
28 KW/h max |
| Gas Consumption (NG) |
3,37 m³ max |
| Gas Consumption (LPG) |
2,18 m³ max |
| Cooling Time |
± 3 mins |
| Flame Height |
Adjustable |
| Air Flow |
Adjustable |
| Drum Speed (RPM) |
Adjustable |
| 3rd Party Software Compability |
Cropster, Artisan |
| Quality Compliance |
CE - ISO |
| Measurements (WxDxH) |
1350x1750x1850 mm |
Design and Customization Options
GR-10 shop type commercial coffee roaster machine’s sleek design not only beautify the visual appearance of your coffee shop but also maximizes efficiency on roasting process.
GR-10 commercial coffee roasting machine offers customization options, including RAL color painting and laser logo imprinting, enabling you to reinforce your brand identity with every roasting batch.
Engineered with premium components from trusted brands such as Schneider, Siemens, Panasonic, Beijer, Fatek, and more, GR-10 coffee roasting machine delivers superior performance.
Its high-quality motors and precision bearings ensure quiet operation, allowing you to focus entirely on the art of coffee roasting.
Additionally, the fully insulated body enhances energy efficiency while maintaining consistent performance throughout even the busiest roasting sessions.
Energy Efficiency and Cost Savings
The GR-10 commercial coffee roasting machine maximizes energy efficiency with its highly insulated construction, effectively reducing energy loss. A built-in gas cutter minimizes waste and enhances security, while the simultaneous roasting and cooling phases save time. In fact, a specially designed cooling tray accelerates the cooling process—completing it in just 3 minutes—thereby reducing both operational time and expenses.
Enhanced Security Features
At Golden Roasters, your safety is our top priority. Every gas and electrical component in our roasters is CE and UL certified to ensure reliable and secure operation. A built-in gas safety system automatically shuts down the machine in the event of abnormal pressure, and an emergency stop button provides an extra layer of protection, keeping your operations safe and under control. Additionally, an integrated mechanical chaff collecting system, located beneath the cyclone, further safeguards your coffee roasting sessions.
Comprehensive Tech Support & Warranty
Invest confidently in the GR-10 coffee shop roaster, backed by a 2-year warranty and lifetime technical support. Our dedicated team is always on hand to ensure your roasting process runs smoothly and your machine consistently performs at its best.
