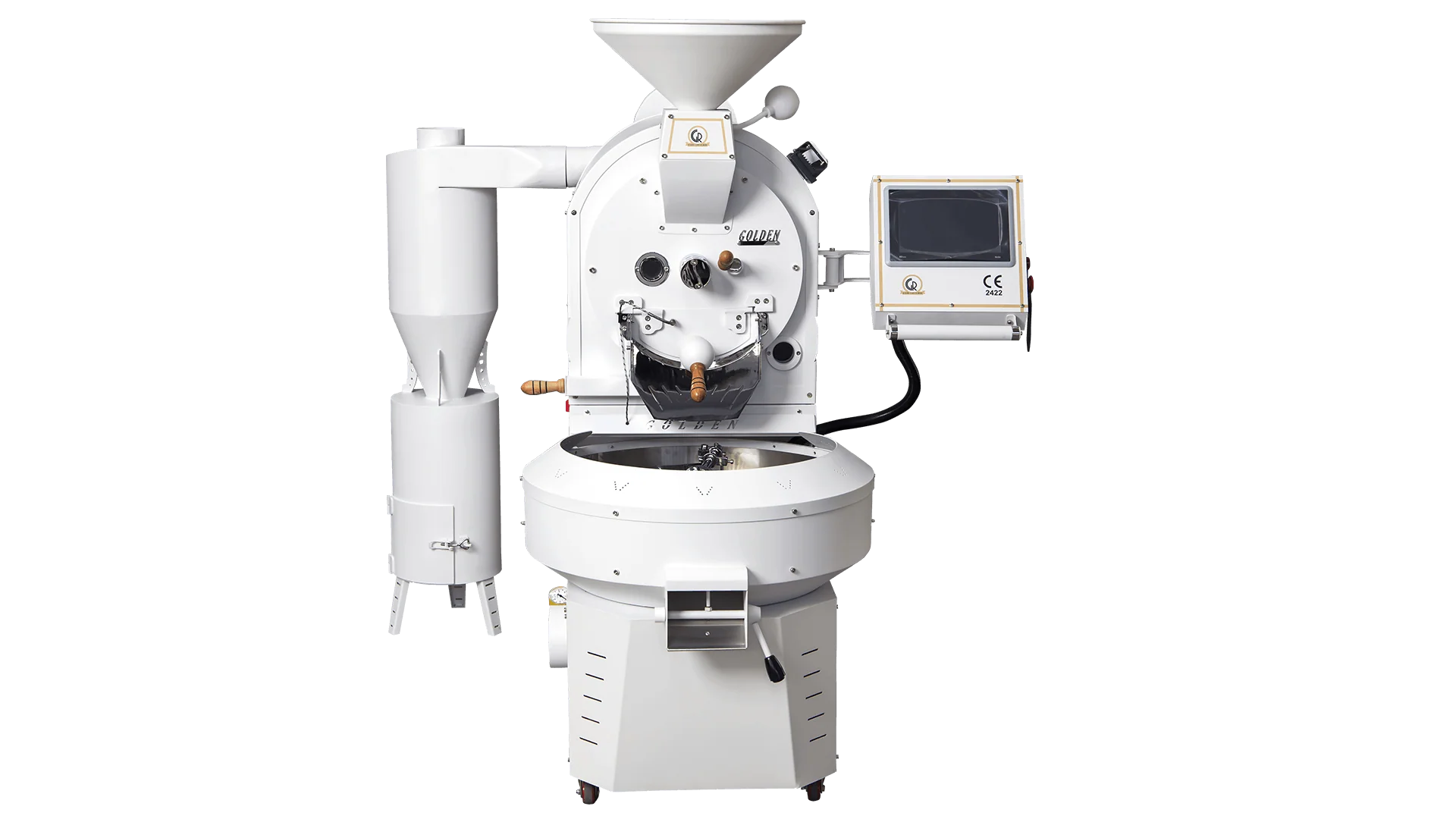

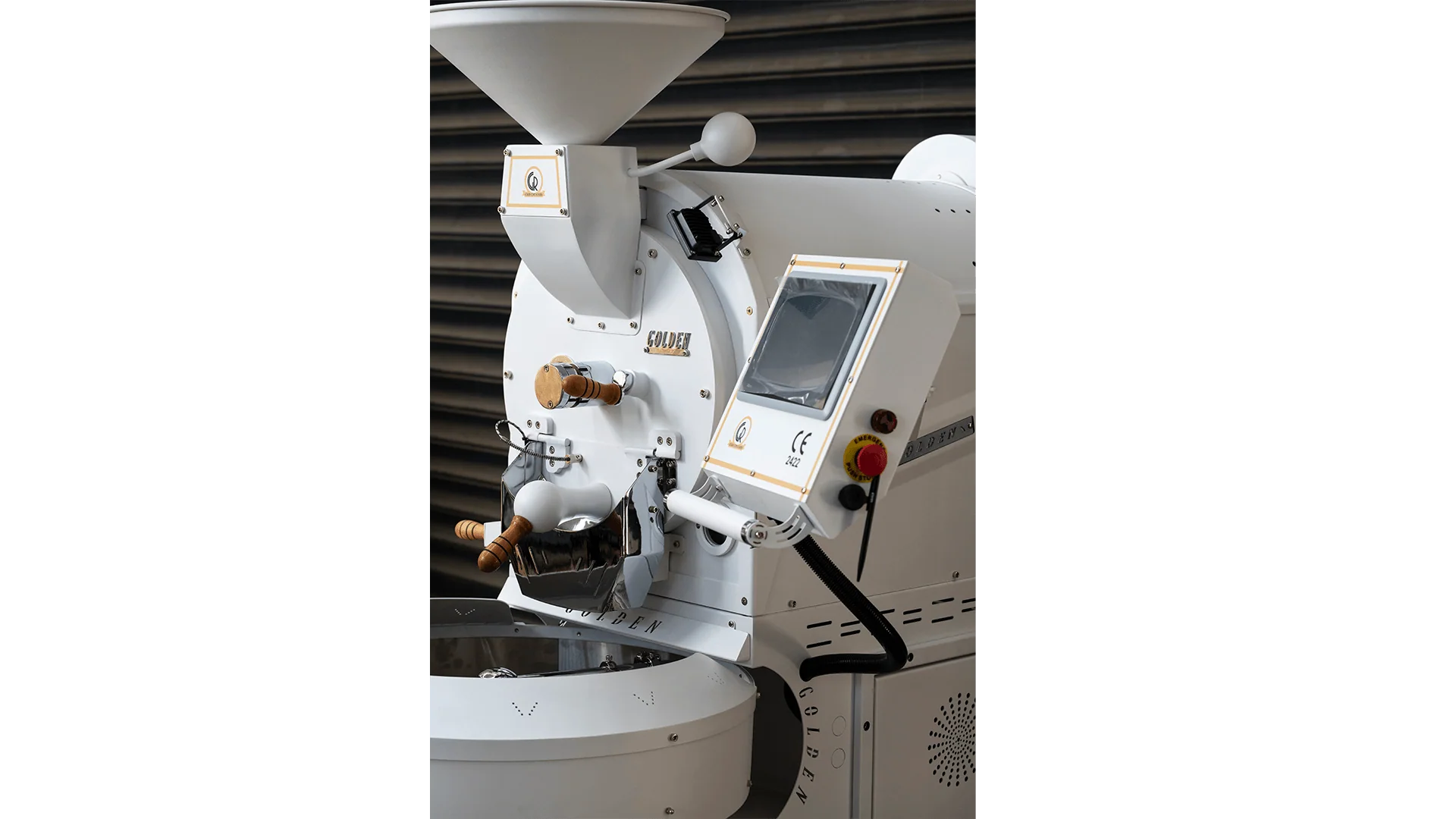

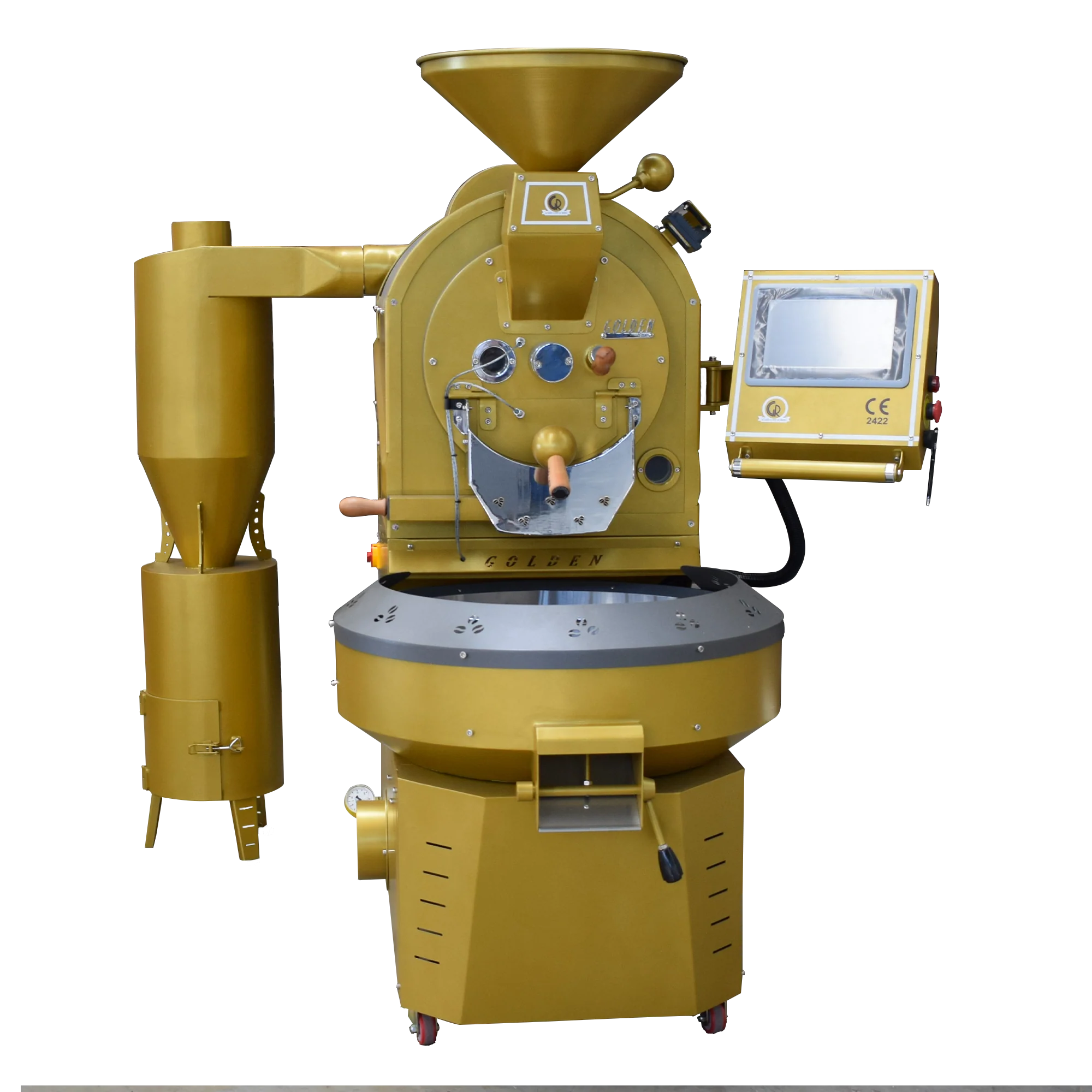

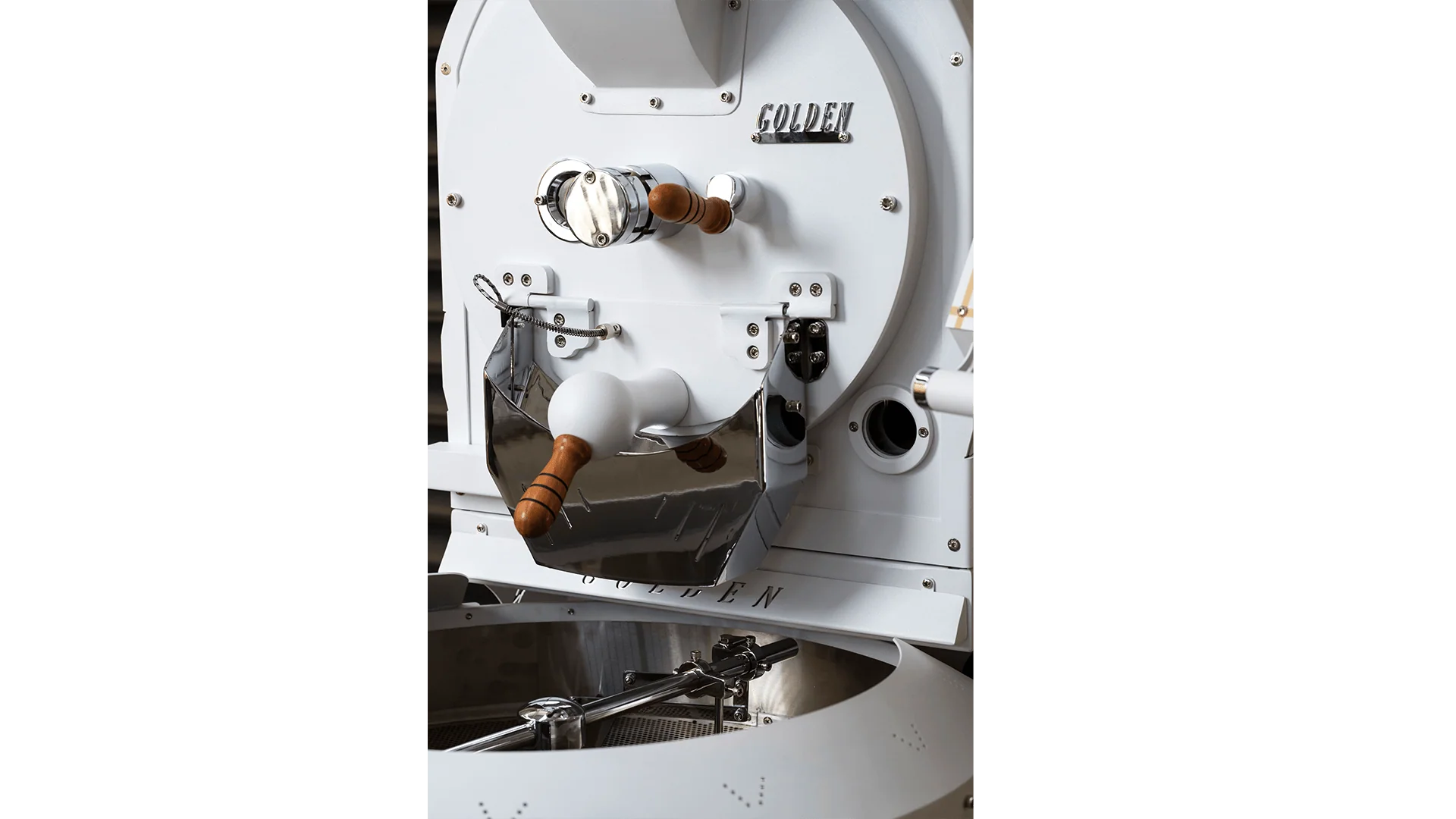

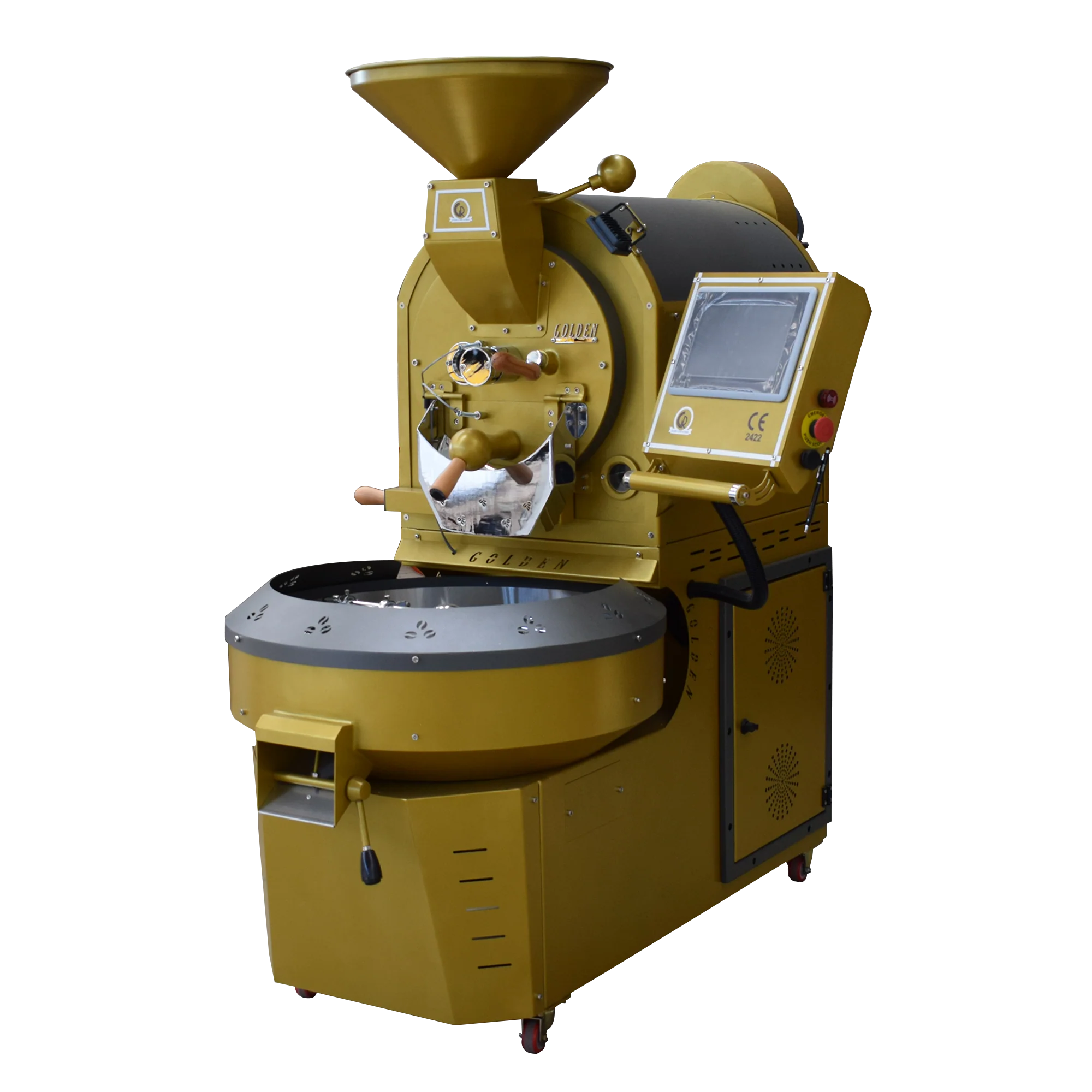

Golden Roasters GR 5 Commercial Coffee Roaster
*Custom Made To Order and Shipping: 10-12 weeks
*Non-cancelable and non-refundable
Golden Roaster 5 KG Coffee Roaster is designed and manufactured for both passionate enthusiasts and seasoned professionals for coffee shops. Built with innovation, GR-5 coffee roasting machine transforms every roast into a journey of discovering hidden aromas and deep, rich flavors.
The Golden Roaster GR-5 is a 5 KG capacity coffee roaster that offers precise control and customization through its advanced PLC controller. Designed with a user-friendly interface, it blends modern technology and craftsmanship to help you achieve the perfect roast every time.
Golden Pressure Profiling System (GPPS)
At Golden Roaster, drum pressure is precisely managed using an integrated internal pressure sensor that continuously monitors the differential pressure within the roasting chamber, measured in Pascals (Pa).
This sensor-driven system dynamically modifies fan speeds and airflow to create and maintain the desired pressure which plays a critical role in ensuring even heat distribution and optimal flavor development throughout the roast. Thus, the system supports to find balancing sweetness, bitterness and acidity in the roasting profile.
| Manual |
User controls all functions by buttons from the control panel.
|
| Semi-Auto |
User controls all functions from a Beijer touchpad screen, and it has PLC unit to record profiles for auto run.
|
| Full Auto |
Auto version with a pneumatic system on the gates. This allows roaster to run saved profile by itself fully automatically. (Full Auto requires air compressor)
|
High Performance and Technology:
Built with premium components from trusted brands such as Schneider, Siemens, Panasonic, Beijer, Fatek and more, the GR-5 coffee roasting machine delivers top-notch coffee roasting performance.
Thanks to its high-quality motors and superior bearings ensure a quiet operation, letting you focus on the art of coffee roasting without distraction.
The body of the coffee roaster machine is fully heat insulated to improve energy efficiency and support sustained performance throughout your busy roasting sessions.
Safety and Warranty:
- CE certified gas blocker and UL certified electric components.
- Gas security System; To stop all system in case of any abnormality in gas pressure
- Emergency button: to turn off all roasting process
- Independent thermocouples with digital indicator
- Chaff driver to collect chaff falling through drum
- 2 years warranty (spare parts and service)
- Lifetime Service warranty
- "Mechanical chaff collector" to lower of the cyclone to minimize the risk of fire.
Inclusions:
- Advanced Controller with PLC
- 10" Beijer Touchscreen Controller
- Chaff Collector Cyclone
- Drup Gap Adjustment Wrench
- Thermocouples
- Interactive Installation Guide & Support
- Lifetime Technical Support
- 2-Years Warranty
| Specification |
Details |
| Batch Capacity |
5 KG Max |
| Capacity per Hour |
30 KG Max |
| Roasting Cycle |
7–17 min |
| Type of Controlling |
PLC |
| PLC Screen |
10" Beijer |
| Electrical Power Options |
110–220–380 V / 50–60 Hz |
| Power Consumption |
1.47 KW/h |
| Heating Source |
LPG – LNG – Natural Gas |
| Burner Type |
Premix |
| Burner Power |
28 KW/h max |
| Gas Consumption (NG) |
2.08 m³ max |
| Gas Consumption (LPG) |
1.56 m³ max |
| Cooling Time |
± 3 mins |
| Flame Height |
Adjustable |
| Air Flow |
Adjustable |
| Drum Speed (RPM) |
Adjustable |
| 3rd Party Software Compatibility |
Cropster, Artisan |
| Quality Compliance |
CE-ISO |
| Measurements (WxDxH) |
705 x 1650 x 1780 mm |
Design and Customization Options
Thanks to stylish design of GR-5 shop type coffee roaster machine, it improves the visual appeal of your coffee shop while maximizing efficiency.
GR-5 commercial coffee roaster is offered via customization options such as RAL colour painting and imprinting your logo via laser printing allows you to reinforce your brands identity with every coffee roasting batch at every aspect.
Built with premium components from trusted brands such as Schneider, Siemens, Panasonic, Beijer, Fatek and more, the GR-5 coffee roasting machine delivers top-notch coffee roasting performance.
Thanks to its high-quality motors and superior bearings ensure a quiet operation, letting you focus on the art of coffee roasting without distraction.
The body of the coffee roaster machine is fully heat insulated to improve energy efficiency and support sustained performance throughout your busy roasting sessions.
Energy Efficiency and Cost Savings
GR-5 coffee roaster maximizes energy efficiency through its thermally high insulated construction, reducing energy loss. Its built-in gas cutter ensures minimizing waste and maximizing security. Moreover; due to simultaneous roasting and cooling phase provide saving on time. A specially designed cooling tray accelerates the cooling process—completing it within just 3 minutes—saving you valuable time and operational expenses.
Enhanced Security Features
Your safety is paramount for Golden Roaster. Every gas and electrical component that are crafted with our roasters have CE and UL certification, ensuring reliable and secure operation. The built-in gas safety system automatically shuts down the coffee roaster machine in the event of abnormal pressure, while an emergency stop button provides an extra protection, keeping your roasting operations safe and under control. Built-in mechanic chaff collecting system located under the cyclone, provides extra security for your coffee roasting session.
Comprehensive Tech Support & Warranty
Invest with confidence knowing that GR-5 coffee shop roaster comes with a 2-year warranty and lifetime technical support. Our dedicated team is always ready to assist, ensuring that your roasting experience remains uninterrupted and your machine operates at peak performance.
